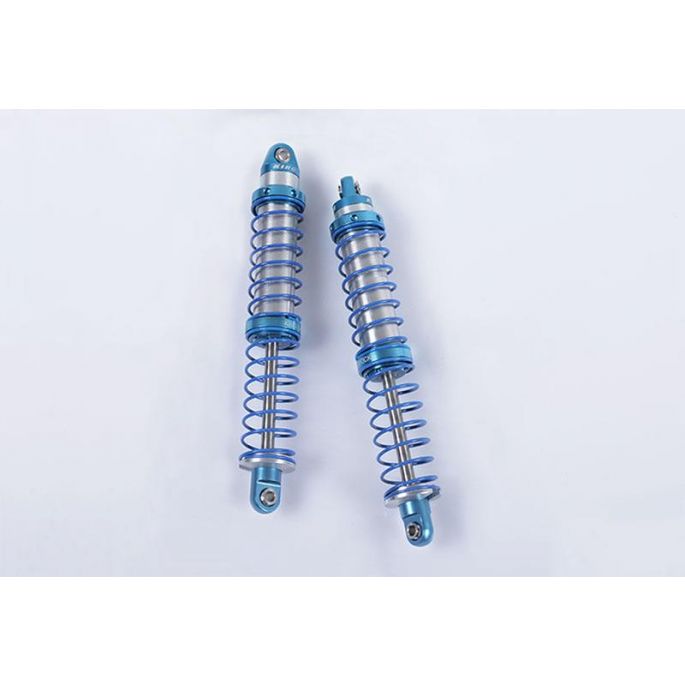

RC4WD King Off-Road Dual Spring Shocks (100mm Medium OD) (Z-D0063)

Specifications:

• Machined Billet Aluminum
• King on Top and Retainer Ring
• Dual Spring Design
• Steel Rod End Ball
• Ball Width: 0.25in / 6.3mm
• Ball Lip Diameter: 0.19in / 4.8mm
• Ball ID: 0.12im / 3mm
• Hole to Hole (Compressed): 2.75in / 70mm
• Hole to Hole (Uncompressed): 3.93in /100mm
• Overall Length: 4.3in / 109.3mm
• Travel Length: 1.18in / 30mm
• Shock Body OD: 0.49in / 12.6mm
• Shaft OD: 0.15in / 3.97mm
• Spring Body OD: 0.66in / 16.98mm
• Spring Body ID: 0.58in / 14.8mm
• Each Weight: 0.91oz / 26g

What's Included:

• 2x RC4WD King Off-Road Dual Spring Shocks (100mm Medium OD)
• 1x King Decal Sheet

Notes:

• Fits Boyer 1/10 Scale Truggy Kit (Front)
• Fits Traxxas TRX-4, but will require both 2mm Z-S0600 and 3mm Z-S0806 Black Spacers with M3 Holes

• Use blue (medium) thread lock to te bottom shock shaft rod end before installing onto your vehicle to help keep it in place.
• When installing on Axial SCX10-3 please use a 5mm black spacer (Z-S0821) on the shock tower.
